Flexible Intelligent Manufacturing, Premium Choice! SF Series 3D Five-Axis Fiber Laser Cutting Machine

Flexible Intelligent Manufacturing

Premium Choice

SF Series 3D Five-Axis Fiber Laser Cutting Machine

Songu Laser SF series 3D five-axis fiber laser cutting machine

A high-tech equipment specially developed for efficient cutting of complex 3D metal components

It features an advanced five-axis linkage CNC system

A high strength gantry type machine bed, and a lightweight crossbeam design

Equipped with self-developed core components

It offers high reliability, precision, efficiency, and flexibility

It is suitable for rapid laser cutting of automotive hot-formed parts, 3D metal-formed components, curved surfaces, and special-shaped tubes

Professional excellence, intelligent innovation

X/Y/Z axis positioning accuracy

±0.05mm

X/Y/Z axis repeated positioning accuracy

±0.03mm

X/Y/Z axis maximum speed

100m/min

X/Y/Z axis maximum acceleration

1g

Lightweight High Strength Cast Aluminum Crossbeam

Smooth operation Full of power

Excellent dynamic performance, fast command response, and precise positioning

High Strength Gantry Type Machine Bed

Extremely stable High-speed smooth cutting

Annealing of large steel structures in a heat treatment furnace to relieve internal stress

High rigidity, high strength, high load capacity, high speed cutting without vibration or deformation

High-End Five-Axis Linkage CNC System

High efficiency Flexible intelligent manufacturing

The 3D cutting head features C, A, and W axes, with the C axis capable of rotating n×360°

The A axis rotates ±135°, while the W axis follows with ±12.5mm

Intelligent control system for high precision and high flexibility cutting

Self-developed Core Optical Components

Professional excellence Quality assurance

Self-developed 3D laser cutting head

High reliability

High speed cutting

High precision

Control system

Optical control

Flexible switching

Developed specifically for efficient cutting of complex 3D metal parts, ensuring high consistency in cutting quality and a longer service life

1. Adopt circulating water cooling

Efficient temperature control ensures the stability of the optical path and core components, extending service life

2. Collision avoidance system

When subjected to a certain lateral force, the cutting head automatically breaks away to prevent excessive stress on the spindle, avoiding precision loss or damage

The non-contact automatic height-tracking function keeps the cutting nozzle at a constant distance from the workpiece during processing, providing strong adaptability to different materials, a wider cutting range, and guaranteed cutting quality

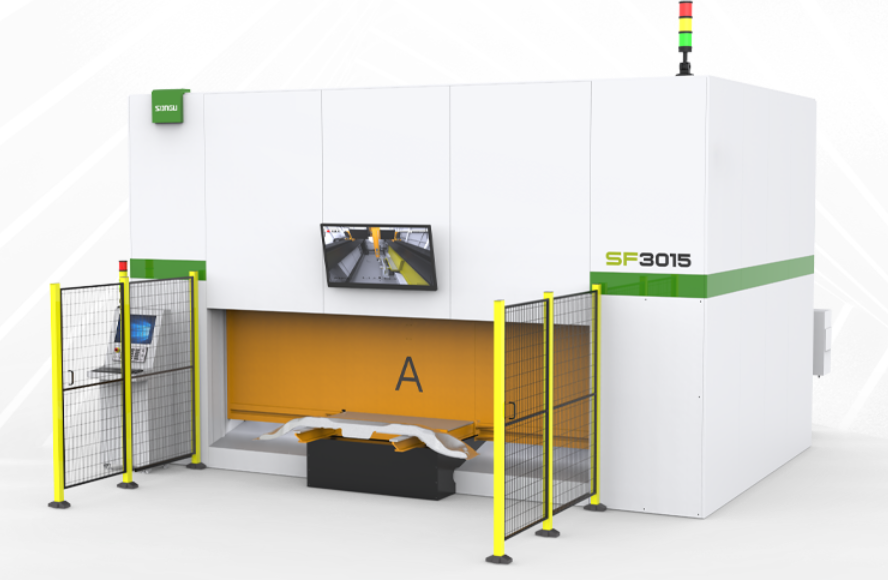

Fully Enclosed Design

Comprehensive protection for complete safety

Equipped with safety features such as an access control system to ensure safe production

Process Applications

Automotive thermoformed parts, 3D metal formed components, curved surfaces, and special-shaped tubes

Automotive rear panel sheet metal laser cutting

Automotive wheel arch laser cutting

Automotive cross beam laser cutting

Automotive tailgate laser cutting

Bent tube laser cutting for various components

Motorcycle exhaust pipe laser cutting

Applications

Automotive manufacturing

Aerospace

Shipbuilding

Mold processing

Home appliances

Machinery industry
